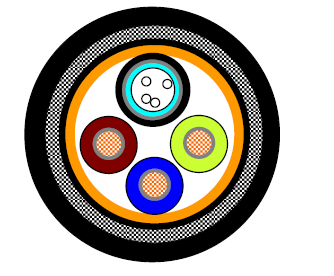

SM fiber +3x1.0mm2 power conductor SWA Composite cable

Power Cable/ Fiber Optic Cable Steel Wire Armor Composite Cable

SM fiber +3x1.0mm2 power conductor SWA Composite cablev

4C Optic Fiber Cable, G652D

Table 1. SM

Parameter



Standard Single Mode Fiber per ITU-T G.652D

Non-zero Dispersion Shifted fiber per ITU-T G.655

Non-zero Dispersion Shifted fiber per ITU-T G.656

Units

Fiber Code

9

8

7





Attenuation, Loose Tube Cables

@1310nm

≤0.35

N/A

N/A

dB/km

@1550nm

≤0.22

≤0.22

≤0.22

dB/km

@1625nm

≤0.25

≤0.26

≤0.26

dB/km

Attenuation, Tight Buffer
or Semi-Tight

Cables



@1310nm



≤0.38



N/A



dB/km



@1550nm



≤0.28



N/A



dB/km







Chromatic Dispersion

between 1260 and 1360nm
(O Band)



≤3.5



N/A



N/A



ps/(nm*km)

between 1460 and 1530nm
(S Band)



N/A



N/A



2.0-7.0



ps/(nm*km)

between 1530 and

1565nm (C Band)



≤18



1.0-10.0



7.0-10.0



ps/(nm*km)



between 1565 and

1625nm (L Band)



≤22



7.0-12.0



10.0-14.0



ps/(nm*km)

Zero Dispersion Wavelength

1310±11

1530-1560

1460-1565

nm

Zero Dispersion Slope

0.093

0.093

0.093

ps/(nm2.km)



Point Discontinuity at 1300nm& 1550nm



0.1



0.1



0.1



dB

Mode Field

Diameter

@1300nm

9.3±0.5

N/A

N/A

um

@1550nm

10.4±0.8

8.5±0.6

9.0±0.5

um

Cable Cut-off   Wavelength

≤1260

≤1450

≤1450

nm

PMD (Individual fiber)

≤0.2

≤0.2

≤0.2

ps/km   1/2

Cladding Diameter

125±1

125±1

125±1

um



Core/Cladding Concentricity Error



≤0.5



≤0.5



≤0.6



um

Cladding Non-Circularity

≤1.0

≤1.0

≤1.0

%

Coating Non-Circularity

≤6.0

≤6.0

≤6.0

%



Primary Coating Diameter



245±10



245±10



245±10



um

Proof-Test Level

100 (0.7)

100 (0.7)

100 (0.7)

Kpsi/GN/m2

Fatigue Coefficient

≥20

≥20

≥20



Temperature Dependence between 0℃ ~
+70℃ @ 1310 & 1550nm



0.1



0.1



0.1



Db/km

The fibers contain no splices.

No of fibers in loose tube: 4 fibers

Strength member: Glass yarn

Sheath:  LSZH

3 x 1.0mm2 Power Conductor

Conductor:7/0.44mm Stranded bare copper wire

Insulation:  XLPE.

Element Assembly

Inner Sheath:  LSZH, thickness is 1.0mm

Armour: Steel wire armor

Outer Sheath: LSZH sheath, norminal outer diameter 17.5±2.0mm

Fire Characteristics:

Flame Propagation: IEC60332

Low Smoke Capacity: IEC61034-1/2

Halogen Free:   IEC60754-1/2

Mechanical Properties:

Tensile load:

Operating: 600N

Installation: 1500N

Bending radius:

Operating: 12.5×OD

Installation: 25×OD

Compressive load:

Short term: 1000N

Long term: 300N
